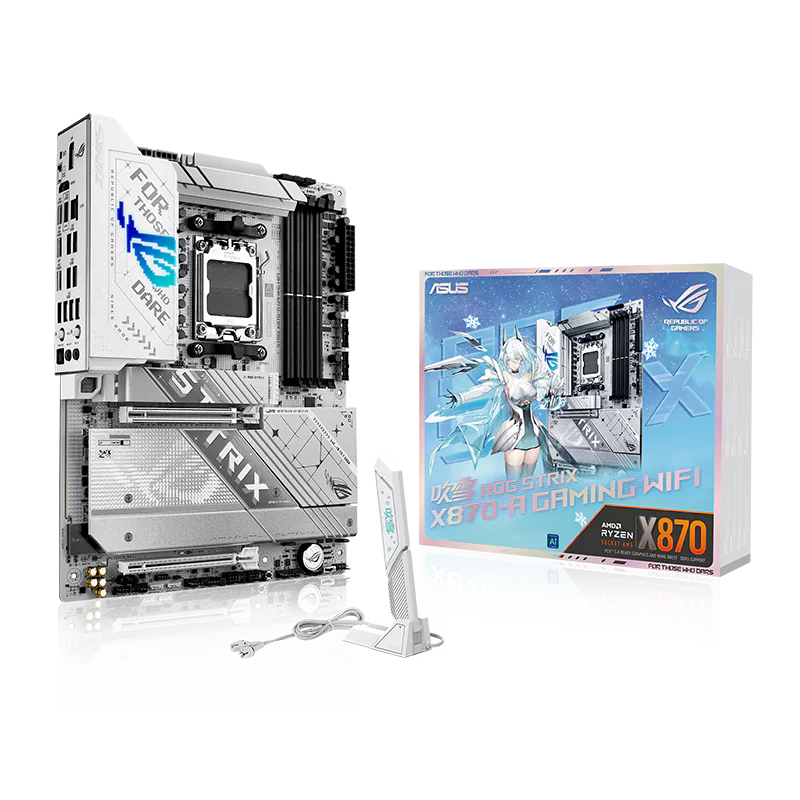

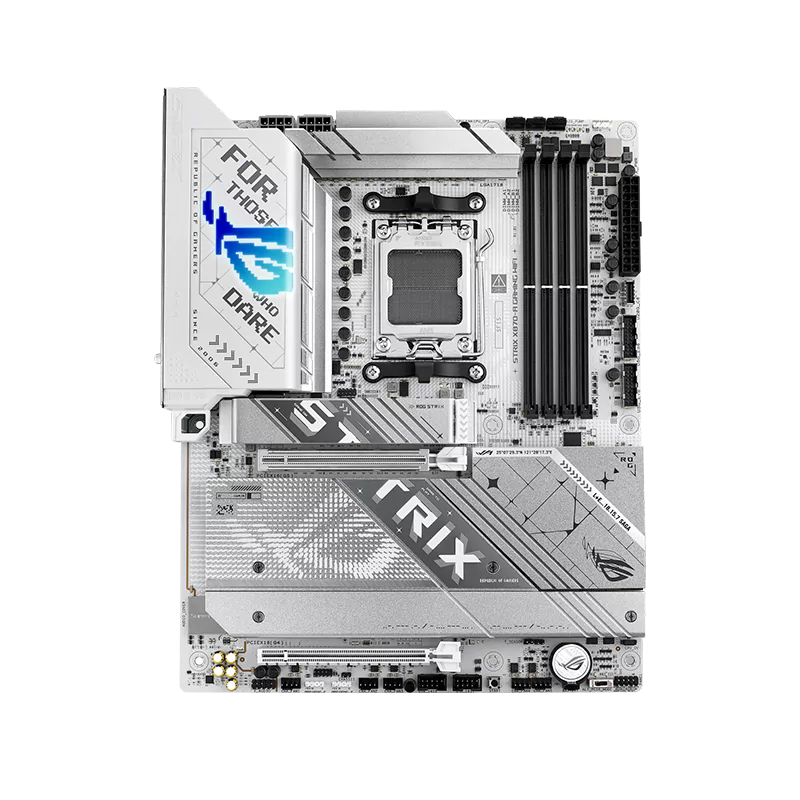

Asus ROG Strix X870-A Gaming WiFi AM5

Brand

Asus

Name

ROG STRIX X870-A GAMING WIFI

CPU Socket

AMD Socket AM5 for AMD Ryzen™ 9000 &
8000 & 7000 Series Desktop Processors

Ethernet/Controller

1 x Intel® 1Gb Ethernet

Memory Slots

4x (DDR5)

Memory Support

Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
Memory*”

Maximum Capacity

256 GB

Channel Architecture

Dual Channel

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel”

Form Factor

ATX
